Passenger Elevator

Capacity Range

• 6 Passenger — 408 Kg
• 8 Passenger — 544 Kg
• 10 Passenger — 680 Kg
• 13 Passenger — 884 Kg
• 16 Passenger — 1088 Kg
• 18 Passenger — 1224 Kg
• 20 Passenger — 1360 Kg
• 24 Passenger — 1632 Kg

Cabin Dimensions

Premium cabin sizes available for different building requirements.

• 1050 × 1050 × 2200 mm
• 1200 × 1200 × 2200 mm
• 1300 × 1350 × 2200 mm
• 1550 × 1550 × 2200 mm
• 1650 × 1850 × 2200 mm
• 2050 × 2050 × 2200 mm

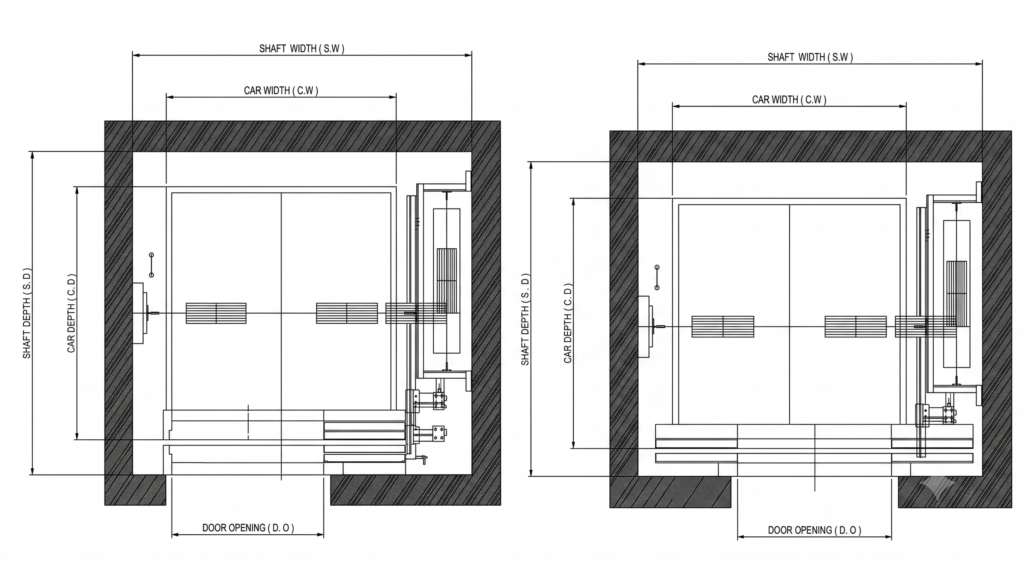

Door Configurations

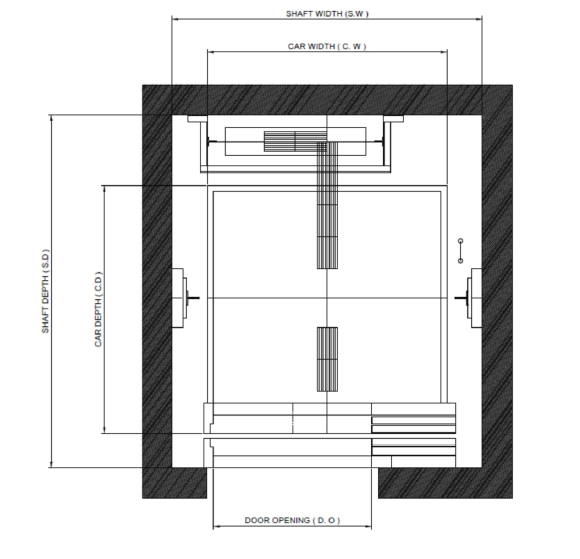

Shaft Requirements

Width: 1800 mm – 2900 mm

Depth: 1450 mm – 2550 mm

Pit & Overhead Requirements

Pit Depth: Minimum 1600–1800 mm

Overhead Height: 4200–5500 mm

Key Features

Applications

Suitable for residential towers, hospitals, hotels, commercial complexes, shopping malls, offices, and industrial buildings.
